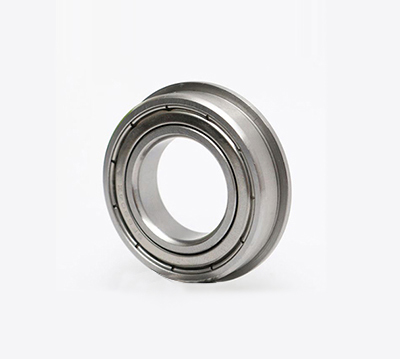

Product name:	Stainless steel flange bearing
Hits:	6
Category:	Stainless steel flange bearing
Product model:

Product details

Bearing size			Overall dimension								Basic rated load	Basic rated load
Bearing size			d	D	Df	B	Bf	B1	Bf1	rsmin	Basic rated load	Basic rated load
flange	Open	dustproofly	mm	mm	mm	mm	mm	mm	mm	mm	Cr (kN)	Cor (kN)
F	681	-	1	3	3.8	1	0.3	-	-	0.05	0.0735	0.0196
F	691	-	1	4	5	1.6	0.5	-	-	0.1	0.1372	0.0392
F	681X	ZZ	1.5	4	5	1.2	0.4	2	0.6	0.05	0.1078	0.0343
F	691X	ZZ	1.5	5	6.5	2	0.6	2.6	0.8	0.15	0.1666	0.049
F	601X	ZZ	1.5	6	7.5	2.5	0.6	3	0.8	0.15	0.3332	0.098
F	682	ZZ	2	5	6.1	1.5	0.5	2.3	0.6	0.08	0.1666	0.049
F	692	ZZ	2	6	7.5	2.3	0.6	3	0.8	0.15	0.3332	0.098
F	602	ZZ	2	7	8.5	2.8	0.7	3.5	0.9	0.15	0.3822	0.1274
F	682X	ZZ	2.5	6	7.1	1.8	0.5	2.6	0.8	0.08	0.1862	0.0588
F	692X	ZZ	2.5	7	8.5	2.5	0.7	3.5	0.9	0.15	0.3822	0.1274
F	602X	ZZ	2.5	8	9.5	2.8	0.7	4	0.9	0.15	0.5488	0.1764
F	683	ZZ	3	7	8.1	2	0.5	3	0.8	0.1	0.3136	0.1078
F	693	ZZ	3	8	9.5	3	0.7	4	0.9	0.15	0.5586	0.1764
F	603	ZZ	3	9	10.5	3	0.7	5	1	0.15	0.5684	0.1862
F	623	ZZ	3	10	11.5	4	1	4	1	0.15	0.6272	0.2156
-	633	ZZ	3	13	-	5	-	5	-	0.2	1.3034	0.49
F	684	ZZ	4	9	10.3	2.5	0.6	4	1	0.1	0.637	0.2254
F	694	ZZ	4	11	12.5	4	1	4	1	0.15	0.9604	0.3528
F	604	ZZ	4	12	13.5	4	1	4	1	0.2	0.9604	0.3528
F	624	ZZ	4	13	15	5	1	5	1	0.2	1.3034	0.49

Bearing size			Overall dimension								Basic rated load	Basic rated load
Bearing size			d	D	Df	B	Bf	B1	Bf1	rsmin	Basic rated load	Basic rated load
flange	Open	dustproofly	mm	mm	mm	mm	mm	mm	mm	mm	Cr (kN)	Cor (kN)
F	634	ZZ	4	16	18	5	1	5	1	0.3	1.3426	0.5194
F	685	ZZ	5	11	12.5	3	0.8	5	1	0.15	0.7154	0.2842
F	695	ZZ	5	13	15	4	1	4	1	0.2	1.078	0.4312
F	605	ZZ	5	14	16	5	1	5	1	0.2	1.3328	0.5096
F	625	ZZ	5	16	18	5	1	5	1	0.3	1.7248	0.6762
F	635	ZZ	5	19	22	6	1.5	6	1.5	0.3	2.3324	0.8918
F	686	ZZ	6	13	15	3.5	1	5	1.1	0.15	1.078	0.441
F	696	ZZ	6	15	17	5	1.2	5	1.2	0.2	1.3426	0.5194
F	606	ZZ	6	17	19	6	1.2	6	1.2	0.3	2.2638	0.8428
F	626	ZZ	6	19	22	6	1.5	6	1.5	0.3	2.3324	0.8918
-	636	ZZ	6	22	-	7	-	7	-	0.3	3.332	1.421
F	687	ZZ	7	14	16	3.5	1	5	1.1	0.15	1.176	0.5096
F	697	ZZ	7	17	19	5	1.2	5	1.2	0.3	1.6072	0.7154
F	607	ZZ	7	19	22	6	1.5	6	1.5	0.3	2.3324	0.8918
F	627	ZZ	7	22	25	7	1.5	7	1.5	0.3	3.283	1.3818
-	637	ZZ	7	26	-	9	-	9	-	0.3	4.5668	1.9796
F	688	ZZ	8	16	18	4	1	5	1.1	0.2	1.2544	0.588
F	698	ZZ	8	19	22	6	1.5	6	1.5	0.3	2.2344	0.9212
F	608	ZZ	8	22	25	7	1.5	7	1.5	0.3	3.2928	1.3818
-	628	ZZ	8	24	-	8	-	8	-	0.3	3.332	1.421

Bearing size			Overall dimension								Basic rated load	Basic rated load
Bearing size			d	D	Df	B	Bf	B1	Bf1	rsmin	Basic rated load	Basic rated load
flange	Open	dustproofly	mm	mm	mm	mm	mm	mm	mm	mm	Cr (kN)	Cor (kN)
-	638	ZZ	8	28	-	9	-	9	-	0.3	4.5668	1.9796
F	689	ZZ	9	17	19	4	1	5	1.1	0.2	1.323	0.6664
F	699	ZZ	9	20	23	6	1.5	6	1.5	0.3	2.4696	1.078
F	609	ZZ	9	24	27	7	1.5	7	1.5	0.3	3.332	1.421
-	629	ZZ	9	26	-	8	-	8	-	0.3	4.5668	1.9796
-	639	ZZ	9	30	-	10	-	10	-	0.6	4.655	2.0776

Bearing size			Overall dimension																Basic rated load	Basic rated load
Bearing size			d		D		Df		B		Bf		B1		Bf1		rsmin		Basic rated load	Basic rated load
flange	Open	dustproofly	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	Cr (kN)	Cor (kN)
-	R09	-	0.04	1.016	0.125	3.175	-	-	0.0469	1.191	-	-	-	-	-	-	0.0039	0.1	0.1078	0.0294
F	R0	ZZ	0.0469	1.191	0.1562	3.969	0.2031	5.159	0.0625	1.588	0.013	0.33	0.0938	2.381	0.031	0.787	0.0039	0.1	0.1078	0.0343
F	R1	ZZ	0.055	1.397	0.1875	4.762	0.234	5.944	0.0781	1.984	0.023	0.584	0.1094	2.778	0.031	0.787	0.0039	0.1	0.2352	0.0686
F	R1-4	ZZ	0.0781	1.984	0.25	6.35	0.296	7.518	0.0938	2.381	0.023	0.584	0.1406	3.572	0.031	0.787	0.0039	0.1	0.2842	0.098
F	R133	ZZ	0.0938	2.381	0.1875	4.762	0.234	5.944	0.0625	1.588	0.018	0.457	0.0938	2.381	0.031	0.787	0.0039	0.1	0.1862	0.0588
F	R1-5	ZZ	0.0938	2.381	0.3125	7.938	0.359	9.119	0.1094	2.778	0.023	0.584	0.1406	3.572	0.031	0.787	0.0059	0.15	0.5488	0.1764
F	R144	ZZ	0.125	3.175	0.25	6.35	0.296	7.518	0.0938	2.381	0.023	0.584	0.1094	2.778	0.031	0.787	0.0039	0.1	0.3136	0.1078
F	R2-5	ZZ	0.125	3.175	0.3125	7.938	0.359	9.119	0.1094	2.778	0.023	0.584	0.1406	3.572	0.031	0.787	0.0039	0.1	0.5586	0.1764
F	R2-6	ZZ	0.125	3.175	0.375	9.525	0.422	10.719	0.1094	2.778	0.023	0.584	0.1406	3.572	0.031	0.787	0.0059	0.15	0.637	0.2254
F	R2	ZZ	0.125	3.175	0.375	9.525	0.44	11.176	0.1562	3.969	0.03	0.762	0.1562	3.969	0.03	0.762	0.0118	0.3	0.6272	0.2156
-	R2A	ZZ	0.125	3.175	0.5	12.7	-	-	0.1719	4.366	-	-	0.1719	4.366	-	-	0.0118	0.3	0.637	0.2254
F	R155	ZZ	0.1562	3.969	0.3125	7.938	0.359	9.119	0.1094	2.778	0.023	0.584	0.125	3.175	0.036	0.914	0.0039	0.1	0.3626	0.147
F	R156	ZZ	0.1875	4.762	0.3125	7.938	0.359	9.119	0.1094	2.778	0.023	0.584	0.125	3.175	0.036	0.914	0.0039	0.1	0.3626	0.147
F	R166	ZZ	0.1875	4.762	0.375	9.525	0.422	10.719	0.125	3.175	0.023	0.584	0.125	3.175	0.031	0.787	0.0039	0.1	0.7056	0.2744
-	R3	ZZ	0.1875	4.762	0.5	12.7	-	-	0.1562	3.969	-	-	0.196	4.978	-	-	0.0118	0.3	1.3034	0.49
-	FR3	ZZ	0.1875	4.762	0.5	12.7	0.565	14.351	0.196	4.978	0.042	1.067	0.196	4.978	0.042	1.067	0.0118	0.3	1.3034	0.49
-	R3A	ZZ	0.1875	4.762	0.625	15.875	-	-	0.196	4.978	-	-	0.196	4.978	-	-	0.0118	0.3	1.4798	0.6174
F	R168	ZZ	0.25	6.35	0.375	9.525	0.422	10.719	0.125	3.175	0.023	0.584	0.125	3.175	0.036	0.914	0.0039	0.1	0.3724	0.1764
F	R188	ZZ	0.25	6.35	0.5	12.7	0.547	13.894	0.125	3.175	0.023	0.584	0.1875	4.762	0.045	1.143	0.0059	0.15	1.078	0.441
F	R4	ZZ	0.25	6.35	0.625	15.875	0.69	17.526	0.196	4.978	0.042	1.067	0.196	4.978	0.042	1.067	0.0118	0.3	1.4798	0.6174

Bearing size		Overall dimension								Basic rated load	Basic rated load
Bearing size		d	D	Df	B	BF	B1	Bf1	rsmin	Basic rated load	Basic rated load
Open	dustproofly	mm	mm	mm	mm	mm	mm	mm	mm	Cr (kN)	Cor (kN)
MF41X	-	1.2	4	4.8	1.8	0.4	-	-	0.1	0.108	0.034
MF52	ZZ	2	5	6.2	2	0.6	2.5	0.6	0.1	0.167	0.049
MF62	-	2	6	7.2	2.5	0.6	-	-	0.15	0.333	0.098
MF72	ZZ	2	7	8.2	2.5	0.6	3	0.6	0.15	0.382	0.127
MF82X	-	2.5	8	9.2	2.5	0.6	-	-	0.2	0.559	0.176
MF63	ZZ	3	6	7.2	2	0.6	2.5	0.6	0.1	0.206	0.074
MF83	-	3	8	9.2	2.5	0.6	-	-	0.15	0.392	0.137
MF93	ZZ	3	9	10.2	2.5	0.6	4	0.8	0.2	0.568	0.186
MF74	-	4	7	8.2	2	0.6	-	-	0.1	0.314	0.118
MF74	ZZ	4	7	8.2	-	-	2.5	0.6	0.1	0.255	0.108
MF84	ZZ	4	8	9.2	2	0.6	3	0.6	0.15	0.392	0.137
MF104	ZZ	4	10	11.6	3	0.6	4	0.8	0.2	0.588	0.206
MF85	-	5	8	9.2	2	0.6	-	-	0.1	0.304	0.118
MF85	ZZ	5	8	9.2	-	-	2.5	0.6	0.1	0.216	0.069
MF95	ZZ	5	9	10.2	2.5	0.6	3	0.6	0.15	0.431	0.167
MF105	ZZ	5	10	11.6	3	0.6	4	0.8	0.15	0.431	0.167
MF115	ZZ	5	11	12.6	-	-	4	0.8	0.15	0.715	0.284
MF106	ZZ	6	10	11.2	2.5	0.6	3	0.6	0.15	0.500	0.216
MF126	ZZ	6	12	13.2	3	0.6	4	0.8	0.2	0.421	0.294
MF117	ZZ	7	11	12.2	2.5	0.6	3	0.6	0.15	0.451	0.206

Bearing size		Overall dimension								Basic rated load	Basic rated load
Bearing size		d	D	Df	B	BF	B1	Bf1	rsmin	Basic rated load	Basic rated load
Open	dustproofly	mm	mm	mm	mm	mm	mm	mm	mm	Cr (kN)	Cor (kN)
MF137	ZZ	7	13	14.2	3	0.6	4	0.8	0.2	0.539	0.274
MF128	ZZ	8	12	13.2	2.5	0.6	3.5	0.8	0.15	0.539	0.274
MF148	ZZ	8	14	15.6	3.5	0.8	4	0.8	0.2	0.813	0.382
MR31	-	1	3	-	1.5	-	-	-	0.05	0.074	0.020
MR41X	ZZ	1.2	4	-	1.8	-	2.5	-	0.1	0.108	0.034
MR52	ZZ	2	5	-	2	-	2.5	-	0.1	0.167	0.049
MR62	ZZ	2	6	-	2.5	-	2.5	-	0.15	0.333	0.098
MR72	ZZ	2	7	-	2.5	-	3	-	0.15	0.382	0.127
MR82X	-	2.5	8	-	2.5	-	-	-	0.2	0.559	0.176
MR63	ZZ	3	6	-	2	-	2.5	-	0.1	0.206	0.074
MR83	ZZ	3	8	-	2.5	-	3	-	0.15	0.392	0.137
MR93	ZZ	3	9	-	2.5	-	4	-	0.2	0.568	0.186
MR74	-	4	7	-	2	-	-	-	0.1	0.314	0, ., 118 ,
MR74	ZZ	4	7	-	-	-	2.5	-	0.1	0.255	0.108
MR84	ZZ	4	8	-	2	-	3	-	0.15	0.392	0.137
MR104	ZZ	4	10	-	3	-	4	-	0.2	0.588	0.206
MR85	-	5	8	-	2	-	-	-	0.1	0.304	0.118
MR85	ZZ	5	8	-	-	-	2.5	-	0.1	0.216	0.088
MR95	ZZ	5	9	-	2.5	-	3	-	0.15	0.431	0.167
MR105	ZZ	5	10	-	3	-	4	-	0.15	0.431	0.167

Bearing size		Overall dimension								Basic rated load	Basic rated load
Bearing size		d	D	Df	B	BF	B1	Bf1	rsmin	Basic rated load	Basic rated load
Open	dustproofly	mm	mm	mm	mm	mm	mm	mm	mm	Cr (kN)	Cor (kN)
MR115	ZZ	5	11	-	-	-	4	-	0.15	0.715	0.294
MR106	ZZ	6	10	-	2.5	-	3	-	0.15	0.500	0.216
MR126	ZZ	6	12	-	3	-	4	-	0.2	0.715	0.294
MR117	ZZ	7	11	-	2.5	-	3	-	0.15	0.451	0.206
MR137	ZZ	7	13	-	3	-	4	-	0.2	0.539	0.274
MR128	ZZ	8	12	-	2.5	-	3.5	-	0.15	0.539	0.274
MR148	ZZ	8	14	-	3.5	-	4	-	0.2	0.813	0.382

Bearing size				Overall dimension						Basic rated load	Basic rated load
Bearing size				d	D	Df	B/B1	Bf	rsmin	Basic rated load	Basic rated load
flang	Open	dustproofly	plastic cover	mm	mm	mm	mm	mm	mm	Cr (kN)	Cor (kN)
F	6700	ZZ	2RS	10	15	16.5	3/4	0.8	0.15	0.8526	0.4312
F	6800	ZZ	2RS	10	19	21	5	1	0.3	1.715	0.8428
F	63800	ZZ	2RS	10	19	21	7	1.5	0.3	1.715	0.8428
F	6800W	ZZ	2RS	10	19	21	4	1	0.15	0.8526	0.4312
F	6900	ZZ	2RS	10	22	25	6	1.5	0.3	2.695	1.274
F	6900W	ZZ	2RS	10	22	25	5	1.5	0.3	1.715	0.8428
F	6701	ZZ	2RS	12	18	19.5	4	0.8	0.2	0.9212	0.5292
F	6801	ZZ	2RS	12	21	23	5	1.1	0.3	1.911	1.0388
F	63801	ZZ	2RS	12	21	23	7	1.5	0.3	1.911	1.0388
F	6801W	ZZ	2RS	12	21	23	4	1.1	0.2	0.9212	0.5292
F	6901	ZZ	2RS	12	24	26.5	6	1.5	0.3	2.8812	1.47
F	6901W	ZZ	2RS	12	24	26.5	5	1.5	0.3	1.911	1.0388
F	6702	ZZ	2RS	15	21	22.5	4	0.8	0.2	0.9408	0.5782
F	6802	ZZ	2RS	15	24	26	5	1.1	0.3	2.0678	1.2544
F	63802	ZZ	2RS	15	24	26	7	1.5	0.3	2.0678	1.2544
F	6802W	ZZ	2RS	15	24	26	4	1.1	0.2	0.9408	0.5782
F	6902	ZZ	2RS	15	28	30.5	7	1.5	0.3	4.3218	2.2638
F	6902W	ZZ	2RS	15	28	30.5	5	1.5	0.3	2.0678	1.2544
F	6703	ZZ	2RS	17	23	24.5	4	0.8	0.2	0.9996	0.6566
F	6803	ZZ	2RS	17	26	28	5	1.1	0.3	2.2344	1.4602
